Temperature Thermowell

ADDA thermowells protect temperature sensors in process measurement applications. The range includes welded, fixed-threaded, and flanged designs, with straight, tapered, and stepped structures available as listed in the product tables.

Authoritative Qualification Certifications

We hold ISO quality certification, national high-tech enterprise qualification, China measuring instrument type approval, and explosion-proof and safety certifications to support reliable product quality.

Custom Engineering

Configurable materials, connections, signals, displays, and installation solutions for different process environments.



Welded Integral Drilled Thermowell

Temperature Thermowell

Structural Diagram

CodeNameShapeNDE
ADDA-TH-SStraight StructureStraightM20*1.5 1/2NPTΦ36Φ28
ADDA-TH-TTapered StructureTaperedM20*1.5 1/2NPTΦ13Φ28
ADDA-TH-ZTapered StructureTaperedM20*1.5 1/2NPTΦ18Φ42
ADDA-TH-LStepped StructureSteppedM20*1.5 1/2NPTΦ33.5Φ19

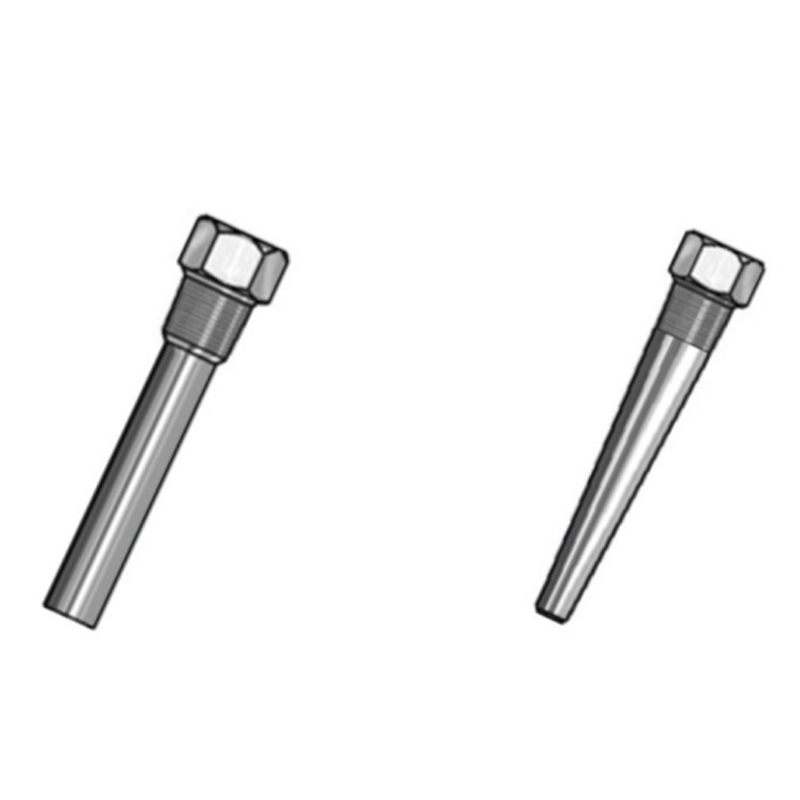

Fixed Threaded Thermowell

Structural Diagram

CodeNameShapeNDEThread SpecSW
ADDA-TL-SStraight StructureStraightM20*1.5 1/2NPTΦ28Φ221NPT / 3/4NPT34
ADDA-TL-ZTapered StructureTaperedM20*1.5 1/2NPT//1NPT / 3/4NPT34

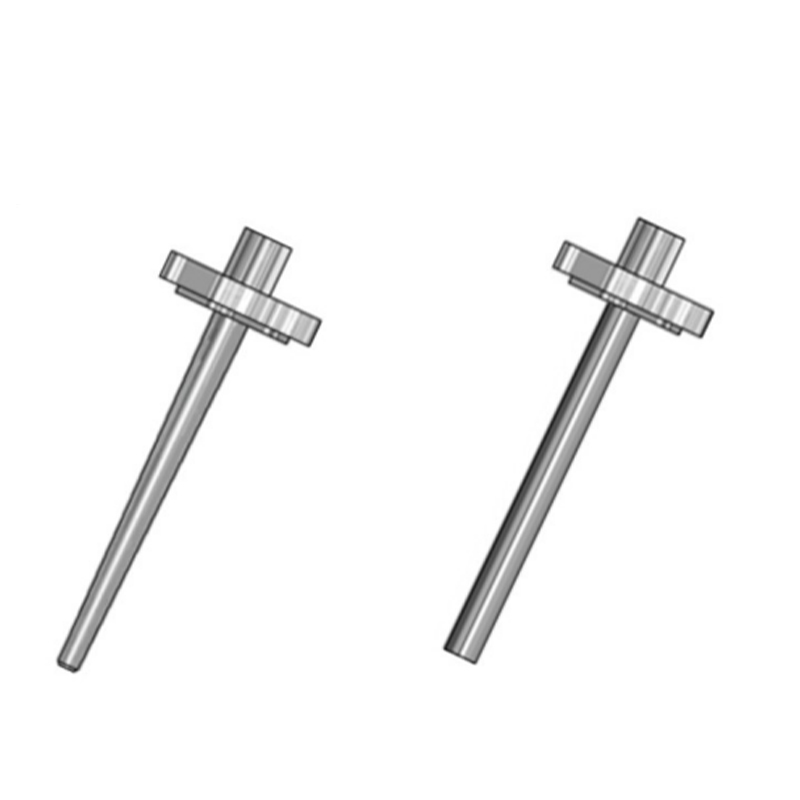

Flanged Thermowell

Structural Diagram

CodeNameShapeNDELength
ADDA-TF-SStraight StructureStraightM20*1.5 1/2NPTΦ16Φ2034
ADDA-TF-ZTapered StructureTaperedM20*1.5 / 1/2NPTΦ21Φ2525/30



Related Products

Case Showcase

Frequently Asked Questions

Find quick answers about product selection, customization, technical parameters, delivery, and support for ADDA industrial measurement instruments.

官网询盘

Please provide the measured medium, measuring range, process temperature, process pressure, connection type, output signal, power supply, installation environment, and communication method if remote monitoring is required.

Yes. ADDA can provide customized solutions based on measuring range, process connection, wetted material, display type, communication protocol, installation method, and working environment.

Many ADDA instruments are available with explosion-proof or intrinsically safe configurations. Please confirm the site classification and certification requirements before selection.

Yes. Our team can help recommend a suitable instrument configuration after reviewing your application conditions, including medium, range, connection, output signal, and installation requirements.

Lead time depends on product type, quantity, customization requirements, and certification needs. Standard products usually have a shorter delivery time, while customized models may require additional production time.
