Sanitary Compact Temperature Transmitter

Categories Sanitary Transmitters, Temperature Transmitters

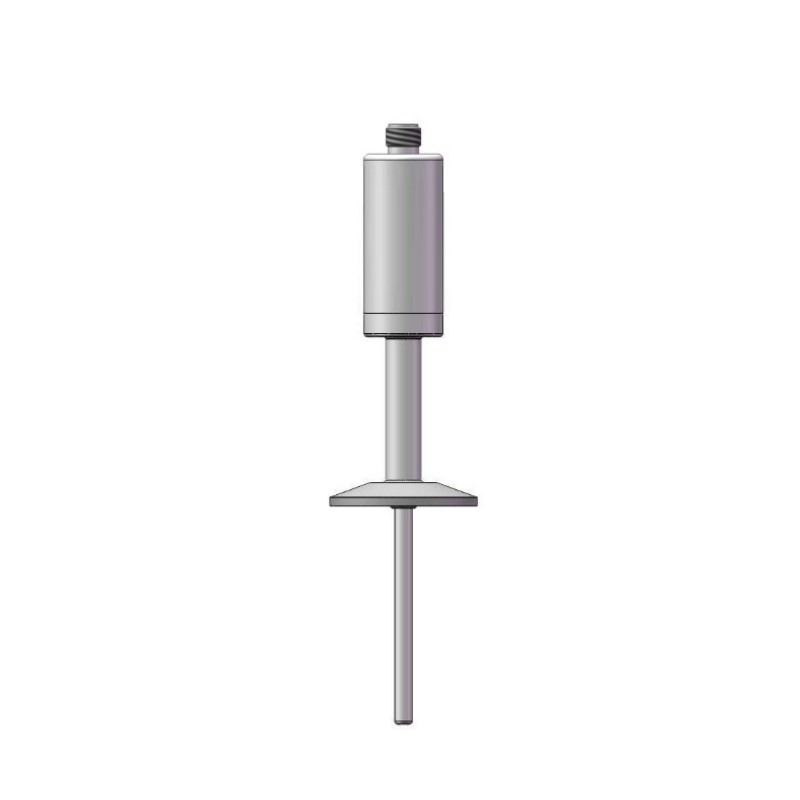

Sanitary Compact Temperature Transmitter

The ADDA-T-JW sanitary compact temperature transmitter is designed for sanitary temperature measurement in food, beverage, pharmaceutical, and bioengineering fields. Product details describe an all-stainless-steel dead-angle-free structure, silicone rubber or epoxy resin sealing, vibration and moisture resistance, 4–20 mA DC output, and IP65/IP67 protection.

Authoritative Qualification Certifications

We hold ISO quality certification, national high-tech enterprise qualification, China measuring instrument type approval, and explosion-proof and safety certifications to support reliable product quality.

Custom Engineering

Configurable materials, connections, signals, displays, and installation solutions for different process environments.

Product Features

The ADDA-T-JW Series sanitary temperature transmitter uses RTD sensing for food, beverage, pharmaceutical, and bioengineering applications. Its all-stainless-steel construction has no hygienic dead spaces and is designed to comply with FDA requirements. Key features include:

Sealed with silicone rubber or epoxy resin for vibration and moisture resistance; suitable for harsh operating environments.
High accuracy, low quiescent power consumption, stable and reliable operation, and long service life.
Hygienic design complies with EHEDG, 3A, FDA, and GMP requirements.
Wetted material surface roughness down to Ra 0.4.

Applications

Temperature measurement in food, beverage, pharmaceutical, and other sanitary applications.

Measuring Medium

Media compatible with the wetted materials.

Performance Specifications

Accuracy	±0.1%, ±0.2%, 0.5% Upper Range Limit, see specifications for details
Range	-50~400 degrees C, see selection table for details
Annual Stability	±0.05% Span/year
Voltage Influence	When the supply voltage varies within 10.5V/16.5V~36V DC, the changes in zero point and span shall not exceed ±0.001%URL/V
Output Signal	4mA~20mADC
Protection Grade	IP65/IP67

Range

Sensor Type	Measuring Range degrees C	Minimum Measurable Range degrees C	Measurement Accuracy (whichever is greater) degrees C
Pt100	-50~400	50	±0.2% range or ±0.2
Pt1000	-50~350	50	±0.2% range or ±0.2

Environmental Conditions

Item	Condition
Operating Ambient Temperature Range	-40 degrees C ~ 85 degrees C
Storage Ambient Temperature Range	-40 degrees C ~ 100 degrees C
Operating Ambient Humidity Range	5%RH~100%RH@40 degrees C

Power Supply and Load Conditions

Item	Operating Condition
Power Supply Voltage	4mA~20mA: 10.5V~36V DC
Load Resistance	0Ω~600Ω
Transmission Distance	< 1000m
Power Consumption
4mA~20mA	<= 500mW@24V DC, 20.8mA
