Sanitary Pressure Transmitter

Categories Pressure Transmitters, Sanitary Transmitters

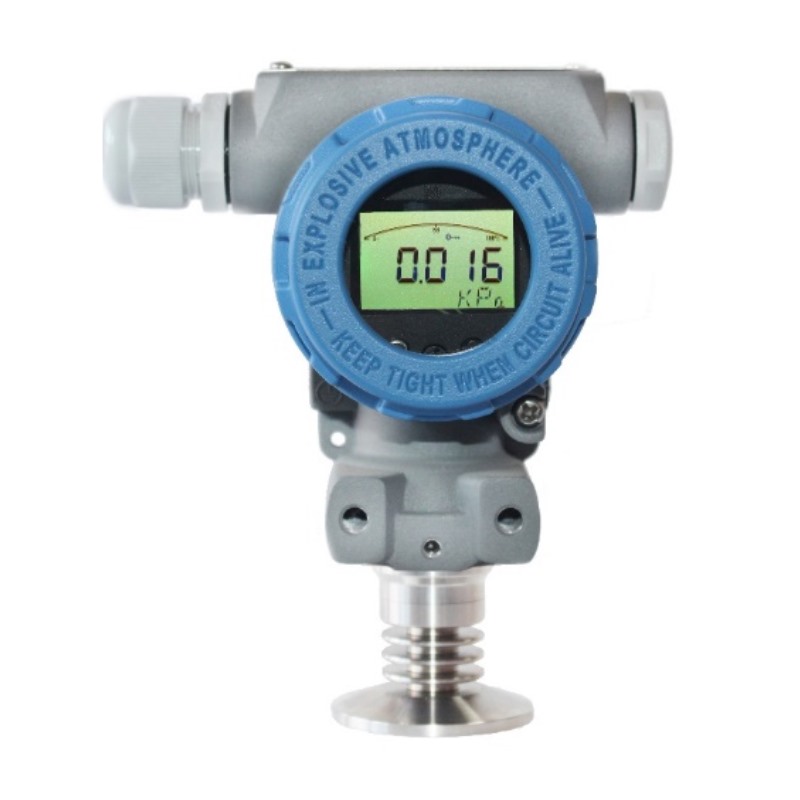

Sanitary Pressure Transmitter

The ADDA-P-1KW sanitary pressure transmitter is designed for pressure and level measurement in food, beverage, pharmaceutical, and bioengineering applications. It uses a sanitary all-stainless-steel structure, 355° rotating LCD module, diffused silicon piezoresistive technology, CIP/SIP cleaning support, 4–20 mA DC + HART or Modbus-RTU/RS485 output, and IP67 protection.

Authoritative Qualification Certifications

We hold ISO quality certification, national high-tech enterprise qualification, China measuring instrument type approval, and explosion-proof and safety certifications to support reliable product quality.

Custom Engineering

Configurable materials, connections, signals, displays, and installation solutions for different process environments.

Product Features

The ADDA-P-1KW smart flush diaphragm pressure transmitter is designed for sanitary applications in food, beverage, pharmaceutical, and bioengineering industries. It features an all-stainless-steel structure and a dot-matrix LCD module that supports 355° rotation. The hygienic design has no dead spaces and is designed to comply with FDA requirements.

Uses diffused silicon piezoresistive technology for stable performance, with accuracy up to 0.1%F.S.
Hygienic design complies with EHEDG, 3A, FDA, and GMP requirements.
Wetted material surface roughness down to Ra 0.4
Supports CIP-SIP cleaning, with temperature resistance up to 150 degrees C
Uses a high-performance EMC protection circuit module to reduce electromagnetic interference with the output.
High stability: ±0.1% Span/year

Applications

Pressure and level measurement in food, beverage, pharmaceutical, and other sanitary applications.

Measuring Medium

Media compatible with the wetted materials.

Performance Specifications

Accuracy	±0.1%, ±0.2% , ±0.5% Upper Range Limit, see specifications for details
Range	10kPa~40MPa, see selection table for details
Annual Stability	±0.1% Span/year
Ambient Temperature Influence	see specifications for details
Voltage Influence	When the supply voltage varies within 10.5V/16.5V~36V DC, the changes in zero point and span shall not exceed ±0.001%URL/V
Mounting Position Influence	Transmitter installation may cause zero error, this error can be corrected by zero adjustment, with no effect on accuracy
Vibration Influence	Tested according to GB/T18271.3/IEC61298-3 test, < 0.1%
Output Signal	4mA~20mADC+HART Modbus-RTU/RS485
Protection Grade	IP67

Range

Pressure Type	Nominal Range	Minimum Range	Lower Range Limit (LRL)	Upper Range Limit (URL)	Overload*
G/N	20kPa	10kPa	-20kPa	20kPa	Nominal range × 1.5
35kPa	10kPa	-35kPa	35kPa	Nominal range × 1.5
80kPa	20kPa	-80kPa	80kPa	Nominal range × 1.5
150kPa	50kPa	-100kPa	150kPa	Nominal range × 1.5
300kPa	60kPa	-100kPa	300kPa	Nominal range × 1.5
700kPa	140kPa	-100kPa	700kPa	Nominal range × 1.5
1.3MPa	260kPa	-0.1MPa	1.3MPa	Nominal range × 1.5
2.5MPa	500kPa	-0.1MPa	2.5MPa	Nominal range × 1.5
4MPa	0.8MPa	-0.1MPa	4MPa	Nominal range × 1.5
10MPa	2MPa	-0.1MPa	10MPa	Nominal range × 1.5
25MPa	5MPa	-0.1MPa	25MPa	Nominal range × 1.5
40MPa	8MPa	-0.1MPa	40MPa	Nominal range × 1.5
A	35kPa	10kPa	0kPa	35kPa	105kPa
80kPa	20kPa	0kPa	80kPa	Nominal range × 1.5
150kPa	50kPa	0kPa	150kPa	Nominal range × 1.5
300kPa	60kPa	0kPa	300kPa	Nominal range × 1.5
700kPa	140kPa	0kPa	700kPa	Nominal range × 1.5
1.3MPa	260kPa	0kPa	1.3MPa	Nominal range × 1.5
2.5MPa	500kPa	0kPa	2.5MPa	Nominal range × 1.5
4MPa	0.8MPa	0kPa	4MPa	Nominal range × 1.5
10MPa	2MPa	0kPa	10MPa	Nominal range × 1.5
High and low limit setting requirements: lower range value (LRV) and upper range value (URV) must be set within the lower and upper range limits, ｜URV-LRV｜≥ Minimum Range *The overload values refer to the maximum overload range of the sensor. The maximum overload range of the transmitter ultimately depends on the pressure rating of the process connection.

Accuracy

Linear Output Accuracy	G/N	TD<=5	±0.2% Span
Based on standards and reference test conditions, including best fit straight line (BFSL), hysteresis, repeatability. Calibration temperature :20 degrees C ±5 degrees C.
±0.1% Span	≥80kPa
A	TD<=5	±0.2% Span	<=35kPa
±0.1% Span	≥80kPa
Note: TD (Turn down) means turndown ratio , TD= maximum range / current range

Ambient Temperature Influence

Pressure Type	Influencing Quantity	Range
G/N/A	± (0.1+0.05TD) % 20 degrees C of Span	<=35kPa
± (0.1+0.02TD) % 20 degrees C of Span	≥80kPa

Environmental Conditions

Hazardous Area	PCEC	Certificate No.: CE20.2148X Certificate No.: CE23.0612X Ex ia IIC T6 Ga Ex db IIC T6 Gb Ex tb IIIC T80 degrees C Db
Item	Condition
Operating Ambient Temperature Range	-40 degrees C ~ 85 degrees C, LCD display: -20 degrees C ~ 70 degrees C
Storage Ambient Temperature Range	-40 degrees C ~ 100 degrees C, LCD display: -40 degrees C ~ 85 degrees C
Measured Medium Temperature Range	Sanitary fill oil: -20 degrees C ~150 degrees C
Operating Ambient Humidity Range	5%RH~100%RH@40 degrees C

Time Specifications

Total damping time constant: equals the sum of the electronic circuit component damping time constant and sensor capsule damping time constant

Electronic circuit component damping time: 0s~99s adjustable range

Overall response time: <= 90ms (base instrument response time only, excluding diaphragm system response time)

Electromagnetic Compatibility Environment (current signal only)

No.	Test Item	Basic Standard	Test Condition	Performance Level
1	Radiated Disturbance (Enclosure)	GB/T 9254.1/CISPR22	30MHz-1000MHz	B (Note 2)
2	Conducted Disturbance (DC Power Port)	GB/T 9254.1/CISPR22	0.15MHz-30MHz	B (Note 2)
3	Electrostatic Discharge (ESD) Immunity	GB/T 17626.2/IEC61000-4-2	4kV (contact), 8kV (air)	A (Note 1)
4	RF Electromagnetic Field Immunity	GB/T 17626.3/IEC61000-4-3	10V/m (80MHz-1GHz)	A (Note 1)
5	Power Frequency Magnetic Field Immunity	GB/T 17626.8/IEC61000-4-8	30A/m	A (Note 1)
6	Electrical Fast Transient/Burst Immunity	GB/T 17626.4/IEC61000-4-4	2kV (5/50ns, 100kHz)	A (Note 1)
7	Surge Immunity	GB/T 17626.5/IEC61000-4-5	4kV (line-to-line) 2kV (line-to-ground)	A (Note 1)
8	Conducted Disturbance Immunity Induced by RF Fields	GB/T 17626.6/IEC61000-4-6	3V (150kHz-80MHz)	A (Note 1)
Note 1: For performance level A, performance remains normal within the technical specification limits Note 2: For performance level B, function or performance may temporarily decrease or be lost, but can recover automatically, actual operating status, storage and data remain unchanged

Power Supply and Load Conditions

Item	Operating Condition
Power Supply Voltage	HART communication protocol: 16.5V~36V DC
Intrinsically safe version: HART communication protocol: 18.5V~28V DC
Modbus-RTU/RS485: 12V~36V DC
Load Resistance	0Ω~2119Ω during operation 250Ω~600Ω for HART communication
Transmission Distance	< 1000m
Power Consumption
4mA~20mA	<= 500mW@24V DC, 20.8mA
Modbus-RTU/RS485	<= 240mW@24V DC, 10mA
