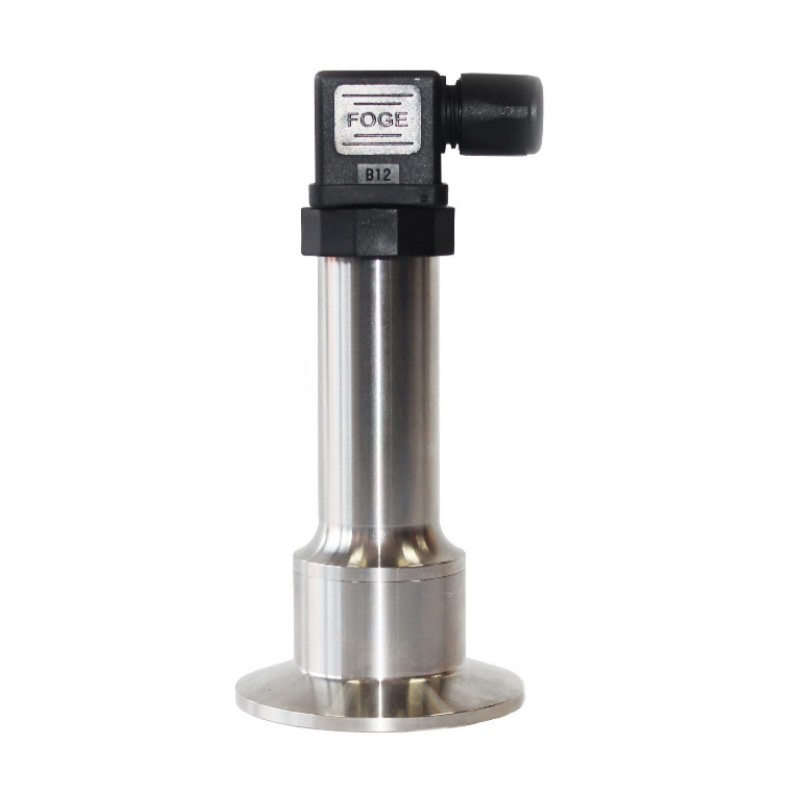

Sanitary Compact Transmitter

The ADDA-P-1FW sanitary compact transmitter is designed for sanitary pressure and level measurement in food, beverage, pharmaceutical, and bioengineering fields. Product details describe an all-stainless-steel structure, E+H ceramic capacitive technology, CIP/SIP cleaning support, wetted surface roughness down to Ra 0.8, and IP65/IP67 protection.

Authoritative Qualification Certifications

We hold ISO quality certification, national high-tech enterprise qualification, China measuring instrument type approval, and explosion-proof and safety certifications to support reliable product quality.

Custom Engineering

Configurable materials, connections, signals, displays, and installation solutions for different process environments.

Product Features

The ADDA-P-1FW smart flush diaphragm pressure transmitter is designed for sanitary applications in food, beverage, pharmaceutical, and bioengineering industries. It features an all-stainless-steel structure. The hygienic design has no dead spaces and is designed to comply with FDA requirements.

Uses E+H ceramic capacitive technology for stable performance, with accuracy up to 0.1%F.S.
Hygienic design complies with EHEDG, 3A, FDA, and GMP requirements.
Wetted material surface roughness down to Ra 0.8
Supports CIP-SIP cleaning, with temperature resistance up to 130 degrees C
High stability: ±0.05% Span/year

Applications

Pressure and level measurement in food, beverage, pharmaceutical, and other sanitary applications.

Measuring Medium

Media compatible with the wetted materials.

Performance Specifications

Accuracy	±0.1%, ±0.2% , ±0.5% Upper Range Limit, see specifications for details
Range	10kPa~4MPa, see selection table for details
Annual Stability	±0.05% Span/year
Ambient Temperature Influence	see specifications for details
Voltage Influence	When the supply voltage varies within 10.5V/16.5V~36V DC, the changes in zero point and span shall not exceed ±0.001%URL/V
Mounting Position Influence	Transmitter installation may cause zero error, this error can be corrected by zero adjustment, with no effect on accuracy
Vibration Influence	Tested according to GB/T18271.3/IEC61298-3 test, < 0.1%
Output Signal	4mA~20mADC+HART Modbus-RTU/RS485
Protection Grade	IP65/IP67

Range

Pressure Type	Nominal Range	Minimum Range	Lower Range Limit (LRL)	Upper Range Limit (URL)	Overload*
G/N	10kPa	2kPa	-10kPa	10kPa	400kPa
20kPa	5kPa	-20kPa	20kPa	600kPa
50kPa	10kPa	-50kPa	50kPa	600kPa
100kPa	20kPa	-100kPa	100kPa	1MPa
200kPa	40kPa	-100kPa	200kPa	1.8MPa
400kPa	80kPa	-100kPa	400kPa	2.5MPa
1MPa	200kPa	-100kPa	1MPa	4MPa
2MPa	400kPa	-100kPa	2MPa	4MPa
4MPa	800kPa	-100kPa	4MPa	6MPa
A	10kPa	2kPa	0kPa	10kPa	400kPa
20kPa	5kPa	0kPa	20kPa	600kPa
50kPa	10kPa	0kPa	50kPa	600kPa
100kPa	20kPa	0kPa	100kPa	1MPa
200kPa	40kPa	0kPa	200kPa	1.8MPa
400kPa	80kPa	0kPa	400kPa	2.5MPa
1MPa	200kPa	0kPa	1MPa	4MPa
High and low limit setting requirements: lower range value (LRV) and upper range value (URV) must be set within the lower and upper range limits, ｜URV-LRV｜≥ Minimum Range *The overload values refer to the maximum overload range of the sensor. The maximum overload range of the transmitter ultimately depends on the pressure rating of the process connection.

Accuracy

Linear Output Accuracy	G/N	TD<=5	±0.2% Span
Based on standards and reference test conditions, including best fit straight line (BFSL), hysteresis, repeatability. Calibration temperature :20 degrees C ±5 degrees C.
±0.1% Span	≥50kPa
A	TD<=5	±0.2% Span	<=20kPa
±0.1% Span	≥50kPa
Note: TD (Turn down) means turndown ratio , TD= maximum range / current range

Ambient Temperature Influence

Pressure Type	Influencing Quantity	Range
G/N/A	± (0.1+0.025TD) % 20 degrees C of Span	<=20kPa
± (0.1+0.015TD) % 20 degrees C of Span	≥50kPa

Environmental Conditions

Item	Condition
Operating Ambient Temperature Range	-40 degrees C ~85 degrees C
Storage Ambient Temperature Range	-40 degrees C ~100 degrees C
Measured Medium Temperature Range	-40 degrees C ~ 130 degrees C
Operating Ambient Humidity Range	5%RH~100%RH@40 degrees C

Time Specifications

Total damping time constant: equals the sum of the electronic circuit component damping time constant and sensor capsule damping time constant

Overall response time: <= 90ms

Electromagnetic Compatibility Environment (current signal only)

No.	Test Item	Basic Standard	Test Condition	Performance Level
1	Radiated Disturbance (Enclosure)	GB/T 9254.1/CISPR22	30MHz-1000MHz	B (Note 2)
2	Conducted Disturbance (DC Power Port)	GB/T 9254.1/CISPR22	0.15MHz-30MHz	B (Note 2)
3	Electrostatic Discharge (ESD) Immunity	GB/T 17626.2/IEC61000-4-2	4kV (contact), 8kV (air)	A (Note 1)
4	RF Electromagnetic Field Immunity	GB/T 17626.3/IEC61000-4-3	10V/m (80MHz-1GHz)	A (Note 1)
5	Power Frequency Magnetic Field Immunity	GB/T 17626.8/IEC61000-4-8	30A/m	A (Note 1)
6	Electrical Fast Transient/Burst Immunity	GB/T 17626.4/IEC61000-4-4	2kV (5/50ns, 100kHz)	A (Note 1)
7	Conducted Disturbance Immunity Induced by RF Fields	GB/T 17626.6/IEC61000-4-6	3V (150kHz-80MHz)	A (Note 1)
Note 1: For performance level A, performance remains normal within the technical specification limits Note 2: For performance level B, function or performance may temporarily decrease or be lost, but can recover automatically, actual operating status, storage and data remain unchanged

Power Supply and Load Conditions

Item	Operating Condition
Power Supply Voltage	HART communication protocol: 16.5V~36V DC
Modbus-RTU/RS485: 12V~36V DC
Load Resistance	0Ω~2119Ω during operation 250Ω~600Ω for HART communication
Transmission Distance	< 1000m
Power Consumption
4mA~20mA	<= 500mW@24V DC, 20.8mA
Modbus-RTU/RS485	<= 240mW@24V DC, 10mA
